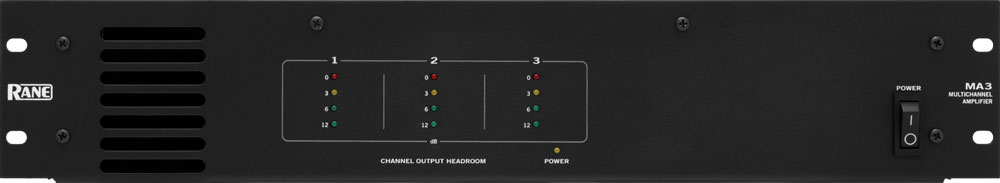

MA3 Multichannel Amplifier

MA3 Multichannel Amplifier

This product has been discontinued
  • 3 Independent Amplifiers
  • 60W per Channel Continuous Average Power into 4Ω, 20-20k Hz
  • 40W per Channel Continuous Average Power into 8Ω, 20-20k Hz
  • Load Sensitive Dynamic Limiters and Headroom Meters
  • SPiKe® Protection Circuitry
  • High Capacity Linear Power Supply
  • Sealed Heat-Tunnel Forced-Air Cooling
  • 80 Hz High Pass Filter Selection per Channel
  • UL / cUL Certified

This product has not been tested to the current CE requirements and is not available in markets requiring CE compliance.

MA3 Multichannel Amplifier

The MA3 is a three-channel amplifier designed to operate reliably in commercial environments. This amplifier was specifically designed for use in:

  • Paging
  • Foreground Music
  • Background Music Distribution

The MA3 is an ideal amplifier with Rane’s paging, foreground music, and background music products, the Rane CP52S, CP64S, CP66 and DA 26S.

The MA3 uses a conventional linear power supply with a toroidal transformer. This configuration minimizes the emissions associated with switching supplies and noisier transformer designs. The power supply features independent secondary supplies for each channel, minimizing load regulation interaction and crosstalk.

The combination of a solid, conservative power supply and forced-air cooling allows the MA 3 to simultaneously deliver 40 watts of continuous average power into 8Ω and 60 watts into 4Ω.

SPiKe®* dynamic protection circuitry completely safeguards each channel against over-voltage, under-voltage, overloads, transients from inductive loads, thermal runaway and instantaneous temperature peaks. Biasing is not allowed to occur when an under-voltage condition exists, reducing turn on and turn off transients.

Fast-response limiters allow the MA3 to tolerate up to 20 dB of overdrive into 8 and 4Ω loads while holding THD below 1%. This means no loss of speech intelligibility or harsh clipping. This feature greatly increases the dynamic range of the system without external limiters.
Peak-responding, load-adaptive meters accurately indicate the remaining headroom. The meters are helpful in setting system levels and indicating signal compression.

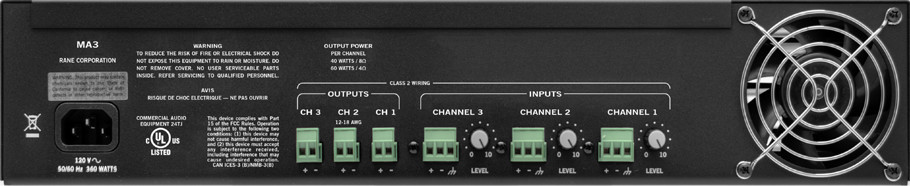

Balanced inputs with Euroblock connectors are provided. Euroblock output connectors accept up to 12 gauge wire. Rear panel Level controls allow amplifier sensitivity adjustment. Internally selectable 80 Hz highpass filters for each channel offer protection against over excursion of small bookshelf speakers and saturation of distribution transformers at low frequencies. These filters are shipped in the “off” position from the factory.

Built to be driven hard

The MA3 Amplifier drives all three channels at the continuous average rated power, indefinitely. It is specifically designed to operate in demanding commercial applications. Very low emissions allow the amplifier to operate in close proximity to signal processing equipment without causing excessive interference. Other Rane equipment may operate next to the MA3 in a rack. The high efficiency “heat tunnel” design allows the amplifier to process severely compressed signals reliably even when installed in a rack with elevated ambient temperatures. Forced-air cooling keeps heat away from other equipment.

You won't hear the other Zones

The MA3 is designed to deliver foreground music, background music and paging signals to three different Zones without annoying crosstalk. A quiet office, for example, with a paging signal only, will not hear foreground music playing in the lounge. The high capacity linear power supply incorporates three independent secondary supplies with independent bridge rectifiers and filters. The result is exceptionally good crosstalk figures even with multiple channels driving full power into 4Ω loads.

No bad “spikes”

The MA3 is designed to operate without interruption of signal with as little as 85 VAC available (120 VAC unit). Even if the Amplifier is operating at full power, the signal will not breakup as the AC line voltage drops to 85 VAC. If the AC line drops lower than 85 VAC the signal mutes without “spikes.” Once AC power is restored, the signal restarts quickly without “spikes” or signal breakup.

The good “SPiKe”

The power amplifiers in the MA3 are protected with National Semiconductors’ proprietary SPiKe* protection circuitry. SPiKe protection offers a level of protection not available in conventional amplifiers. It has the ability to instantaneously monitor the temperature of the power device die, yielding a level of reliability not achievable with discrete designs.

It’s OK to light the 0 dB Headroom indicator a lot

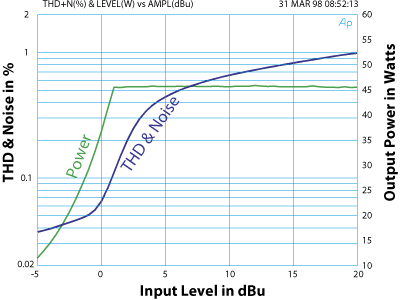

MA3 LimiterThe high-performance limiter used in the MA3 means all the available power can be delivered to the load and not simply held in reserve to avoid overload. There is no need to buy up to four times the required power just to prevent occasional system overload. The MA3 can compress a signal with 9 dB of dynamic power range down to a signal with 3 dB of dynamic power without loss of speech intelligibility or excessive distortion. With typical amplifiers, when 40 watts is needed to achieve a required average SPL of 80 dB, the contractor must buy an amplifier rated at no less than 160 watts just to maintain 6 dB of headroom. The figure below illustrates the performance of the MA3 limiter.

*Spike is a registered trademark of National Semiconductor Corporation.
SPiKe is an acronym for Self Peak Instantaneous (Ke) protection circuitry.

MT6 Transformer Panel

This product has been discontinued

MT6 Front

The MT6 is simply a 2U rack panel that can mount up to six distribution transformers for Rane MA3 amplifiers.

TF407 transformerConstant-voltage transformers are purchased individually. The model TF410 is a 40W, 100V Distribution Transformer. It is rated at 40 watts, 50 Hz to 15k Hz ±1 dB, with 0.5 dB insertion loss. The transformer wires have insulated female tabs. To accomodate different installation preferences, each transformer includes:

  • Four insulated crimp-on male tabs
  • Four wire nuts
  • Two mounting screws and nuts for the MT 6 plate.

MT6 Rear

The MA3 had a design change in February 2007 affecting whether the transformers are mounted internally or externally. For MA3 amplifiers manufactured after February 2007, use the MT6 rack panel with up to six transformers installed. For MA3 amplifiers manufactured before February 2007, transformers may be mounted internally. If you aren't sure, the old MA3 has six transformer mounting holes above the input jacks. The space in the model name was dropped in 2013 (was MA 3, now MA3).

The TF407 70 volt transformer is no longer available from Rane.

Fan Noise

Thermal management is accomplished with a sealed heat-tunnel design incorporating low velocity forced-air and large aperture openings. This design minimizes the noise usually associated with forced-air cooling and eliminates the need for an air filter. Forced-air cooling allows the amplifier to operate reliably in harsh environments and avoid the buildup of heat in unventilated racks associated with passive convection cooling.

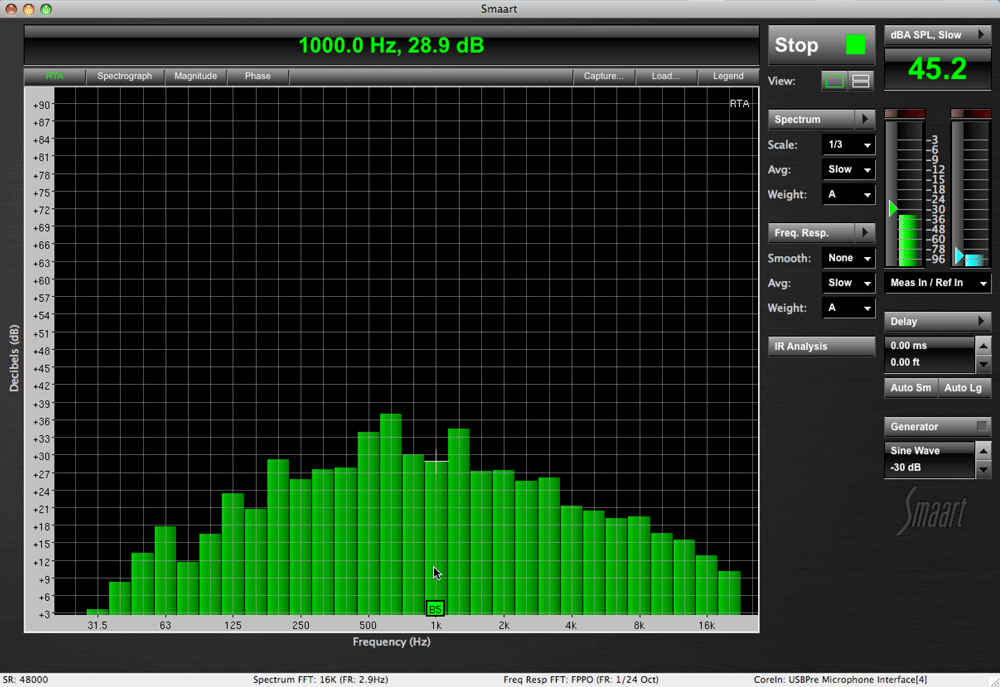

Rane MA3 Amplifier fan noise 6 inches from front panel fan exit grate:

MA3 fan noise

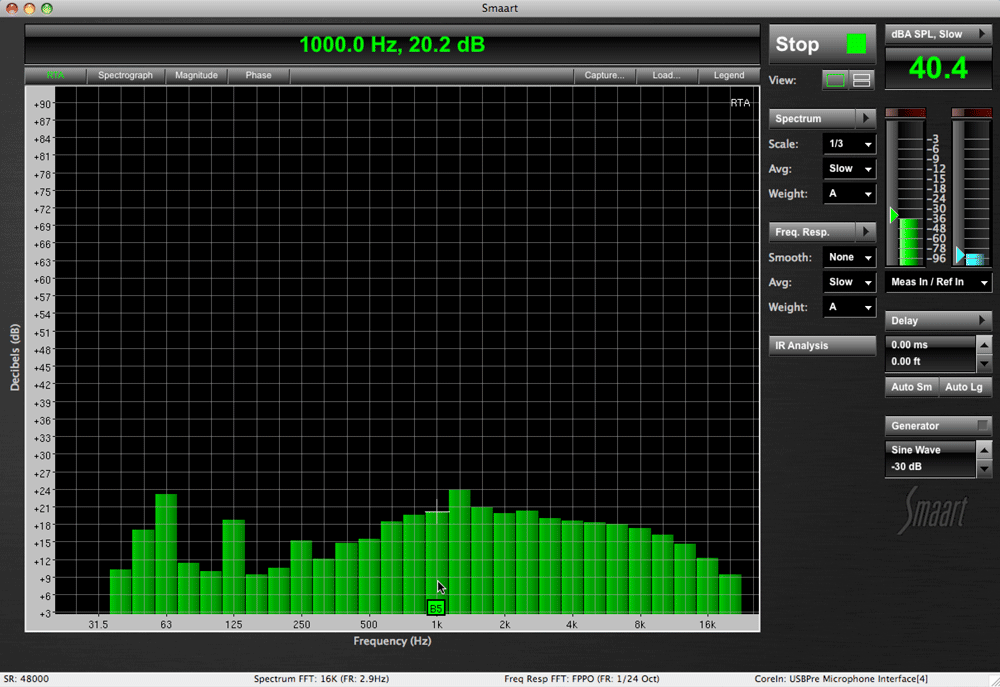

The same room noise with the MA3 Amplifier OFF 6 inches from front panel fan exit grate:

MA3 room noise

MA3 Support

Can I feed all channels the same signal just by connecting to one of the channels?

No. You can use jumpers to connect all input channel connectors (plus and minus required).

My system seems a bit noisy running through the amp. Is there something wrong with the equipment?

Not likely. The most common misconception is that amplifiers must be turned up all the way to achieve maximum output. This is simply not the case. Most amplifiers will reach full output (and clip accordingly) with sensitivity controls set between 12 and 2 o'clock when fed a + 4 dBu signal. Try turning down your amp(s) and verifying the clipping point. This can make a drastic improvement in reduction of noise. Read "Setting Sound System Level Controls" to understand optimum system gain (link below).

Can I run the MA3 below 4 ohms load?

Probably. It will not be damaged but you will obtain much less power output. The MA3 will current limit as necessary. Its fan must be set to high speed.

If the above doesn't answer your question:
Phone the Rane Factory at 425-355-6000, 8:30 AM to 5 PM PST, Monday to Friday.
Email is answered most weekdays from the Rane Factory Contacts.
