Constant-Voltage Audio Distribution Systems

Dennis Bohn, Rane
RaneNote 136 written 1997; last revised 3/07
  • 25, 70.7 & 100 Volts
  • U.S. Standards
  • Just What is "Constant" Anyway?
  • Voltage Variations -- Make Up Your Mind
  • Calculating Losses -- Chasing Your Tail

Background -- Wellspring

Constant-voltage is the common name given to a general practice begun in the late 1920s and early 1930s (becoming a U.S. standard in 1949) governing the interface between power amplifiers and loudspeakers used in distributed sound systems. Installations employing ceiling-mounted loudspeakers, such as offices, restaurants and schools are examples of distributed sound systems. Other examples include installations requiring long cable runs, such as stadiums, factories and convention centers. The need to do it differently than you would in your living room arose the first time someone needed to route audio to several places over long distances. It became an economic and physical necessity. Copper was too expensive and large cable too cumbersome to do things the home hi-fi way.

Stemming from this need to minimize cost, maximize efficiency, and simplify the design of complex audio systems, thus was born constant-voltage. The key to the solution came from understanding the electric company cross-country power distribution practices. They elegantly solved the same distribution problems by understanding that what they were distributing was power, not voltage. Further they knew that power was voltage times current, and that power was conserved. This meant that you could change the mix of voltage and current so long as you maintained the same ratio: 100 watts was 100 watts -- whether you received it by having 10 volts and 10 amps, or 100 volts and 1 amp. The idea bulb was lit. By stepping-up the voltage, you stepped-down the current, and vice-versa. Therefore to distribute 1 megawatt of power from the generator to the user, the power company steps the voltage up to 200,000 volts, runs just 5 amps through relatively small wire, and then steps it back down again at, say, 1000 different customer sites, giving each 1 kilowatt. In this manner large gauge cable is only necessary for the short direct run to each house. Very clever.

Applied to audio, this means using a transformer to step-up the power amplifier's output voltage (gaining the corresponding decrease in output current), use this higher voltage to drive the (now smaller gauge wire due to smaller current) long lines to the loudspeakers, and then using another transformer to step-down the voltage at each loudspeaker. Nothing to it.

U.S. Standards -- Who Says?

This scheme became known as the constant-voltage distribution method. Early mention is found in Radio Engineering, 3rd Ed. (McGraw-Hill, 1947), and it was standardized by the American Radio Manufacturer's Association as SE-101-A & SE-106, issued in July 1949 [1]. Later it was adopted as a standard by the EIA (Electronic Industries Association), and today is covered also by the National Electric Code (NEC) [2].

Basics -- Just What is "Constant" Anyway?

The term "constant-voltage" is quite misleading and causes much confusion until understood. In electronics, two terms exist to describe two very different power sources: "constant-current" and "constant-voltage." Constant-current is a power source that supplies a fixed amount of current regardless of the load; so the output voltage varies, but the current remains constant. Constant-voltage is just the opposite: the voltage stays constant regardless of the load; so the output current varies but not the voltage. Applied to distributed sound systems, the term is used to describe the action of the system at full power only. This is the key point in understanding. At full power the voltage on the system is constant and does not vary as a function of the number of loudspeakers driven, that is, you may add or remove (subject to the maximum power limits) any number of loudspeakers and the voltage will remain the same, i.e., constant.

The other thing that is "constant" is the amplifier's output voltage at rated power -- and it is the same voltage for all power ratings. Several voltages are used, but the most common in the U.S. is 70.7 volts rms. The standard specifies that all power amplifiers put out 70.7 volts at their rated power. So, whether it is a 100 watt, or 500 watt or 10 watt power amplifier, the maximum output voltage of each must be the same (constant) value of 70.7 volts.

Figure 1 diagrams the alternative series-parallel method, where, for example, nine loudspeakers are wired such that the net impedance seen by the amplifier is 8 ohms. The wiring must be selected sufficiently large to drive this low-impedance value. Applying constant-voltage principles results in Figure 2. Here is seen an output transformer connected to the power amplifier which steps-up the full-power output voltage to a value of 70.7 volts (or 100 volts for Europe), then each loudspeaker has integrally mounted step-down transformers, converting the 70.7 volts to the correct low-voltage (high current) level required by the actual 8 ohm speaker coil. It is common, although not universal, to find power (think loudness) taps at each speaker driver. These are used to allow different loudness levels in different coverage zones. With this scheme, the wire size is reduced considerably from that required in Figure 1 for the 70.7 volt connections.

Low-Inpedance Series-Parallel 8 ohm Direct Drive

Figure 1. Low-Inpedance Series-Parallel 8 ohm Direct Drive

70.7V Transformer-Coupled Constant-Voltage Distribution System

Figure 2. 70.7V Transformer-Coupled Constant-Voltage Distribution System

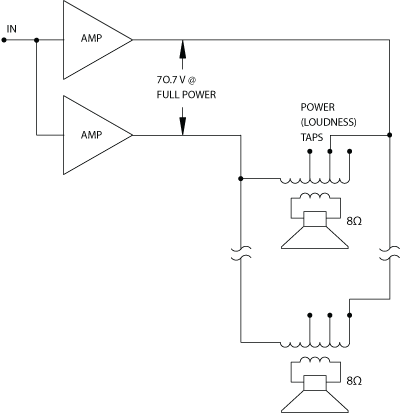

Becoming more popular are various direct-drive 70.7 volt options as depicted in Figure 3. The output transformer shown in Figure 2 is either mounted directly onto (or inside of) the power amplifier, or it is mounted externally. In either case, its necessity adds cost, weight and bulk to the installation. An alternative is the direct-drive approach, where the power amplifier is designed from the get-go (I always wanted to use that phrase, and I sincerely apologize to all non-American readers from having done so) to put out 70.7 volts at full power. An amplifier designed in this manner does not have the current capacity to drive 8 ohm low-impedance loads; instead it has the high voltage output necessary for constant-voltage use -- same power; different priorities. Quite often direct-drive designs use bridge techniques which is why two amplifier sections are shown, although single-ended designs exist. The obvious advantage of direct-drive is that the cost, weight and bulk of the output transformer are gone. The one disadvantage is that also gone is the isolation offered by a real transformer. Some installations require this isolation.

70.7V Direct-Drive Constant-Voltage Distribution System

Figure 3. 70.7V Direct-Drive Constant-Voltage Distribution System

Voltage Variations -- Make Up Your Mind

The particular number of 70.7 volts originally came about from the second way that constant-voltage distribution reduced costs: Back in the late '40s, UL safety code specified that all voltages above 100 volts peak ("max open-circuit value") created a "shock hazard," and subsequently must be placed in conduit -- expensive -- bad. Therefore working backward from a maximum of 100 volts peak (conduit not required), you get a maximum rms value of 70.7 volts (Vrms = 0.707 Vpeak). [It is common to see/hear/read "70.7 volts" shortened to just "70 volts" -- it's sloppy; it's wrong; but it's common -- accept it.] In Europe, and now in the U.S., 100 volts rms is popular. This allows use of even smaller wire. Some large U.S. installations have used as high as 210 volts rms, with wire runs of over one mile. Remember: the higher the voltage, the lower the current, the smaller the cable, the longer the line. [For the very astute reader: The wire-gauge benefits of a reduction in current exceeds the power loss increases due to the higher impedance caused by the smaller wire, due to the current-squared nature of power.] In some parts of the U.S. safety regulations regarding conduit use became stricter, forcing distributed systems to adopt a 25 volt rms standard. This saves conduit, but adds considerable copper cost (lower voltage = higher current = bigger wire), so its use is restricted to small installations.

Calculating Losses -- Chasing Your Tail

As previously stated, modern constant-voltage amplifiers either integrate the step-up transformer into the same chassis, or employ a high voltage design to direct-drive the line. Similarly, constant-voltage loudspeakers have the step-down transformers built-in as diagrammed in Figures 2 and 3. The constant-voltage concept specifies that amplifiers and loudspeakers need only be rated in watts. For example, an amplifier is rated for so many watts output at 70.7 volts, and a loudspeaker is rated for so many watts input (producing a certain SPL). Designing a system becomes a relatively simple matter of selecting speakers that will achieve the target SPL (quieter zones use lower wattage speakers, or ones with taps, etc.), and then adding up the total to obtain the required amplifier power.

For example, say you need (10) 25 watt, (5) 50 watt and (15) 10 watt loudspeakers to create the coverage and loudness required. Adding this up says you need 650 watts of amplifier power -- simple enough -- but alas, life in audioland is never easy. Because of real-world losses, you will need about 1000 watts.

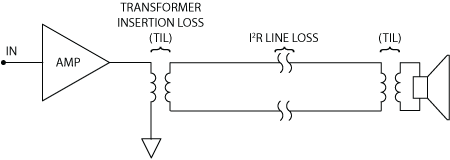

Figure 4 shows the losses associated with each transformer in the system (another vote for direct-drive), plus the very real problem of line-losses. Insertion loss is the term used to describe the power dissipated or lost due to heat and voltage-drops across the internal transformer wiring. This lost power often is referred to as I2R losses, since power (in watts) is current-squared (abbreviated I2) times the wire resistance, R. This same mechanism describes line-losses, since long lines add substantial total resistance and can be a significant source of power loss due to I2R effects. These losses occur physically as heat along the length of the wire.

Transformer & Line Insertion Losses

Figure 4. Transformer & Line Insertion Losses

You can go to a lot of trouble to calculate and/or measure each of these losses to determine exactly how much power is required [3], however there is a Catch-22 involved: Direct calculation turns out to be extremely difficult and unreliable due to the lack of published insertion loss information, thus measurement is the only truly reliable source of data. The Catch-22 is that in order to measure it, you must wait until you have built it, but in order to build it, you must have your amplifiers, which you cannot order until you measure it, after you have built it!

The alternative is to apply a very seasoned rule of thumb: Use 1.5 times the value found by summing all of the loudspeaker powers. Thus for our example, 1.5 times 650 watts tells us we need around 975 watts.

Wire Size -- How Big Is Big Enough?

Since the whole point of using constant-voltage distribution techniques is to optimize installation costs, proper wire sizing becomes a major factor. Due to wire resistance (usually expressed as ohms per foot, or meter) there can be a great deal of engineering involved to calculate the correct wire size. The major factors considered are the maximum current flowing through the wire, the distance covered by the wire, and the resistance of the wire. The type of wire also must be selected. Generally, constant-voltage wiring consists of a twisted pair of solid or stranded conductors with or without a jacket.

For those who like to keep it simple, the job is relatively easy. For example, say the installation requires delivering 1000 watts to 100 loudspeakers. Calculating that 1000 watts at 70.7 volts is 14.14 amps, you then select a wire gauge that will carry 14.14 amps (plus some headroom for I2R wire losses) and wire up all 100 loudspeakers. This works, but it may be unnecessarily expensive and wasteful.

Really meticulous calculators make the job of selecting wire size a lot more interesting. For the above example, looked at another way, the task is not to deliver 1000 watts to 100 loudspeakers, but rather to distribute 10 watts each to 100 loudspeakers. These are different things. Wire size now becomes a function of the geometry involved. For example, if all 100 loudspeakers are connected up daisy-chain fashion in a continuous line, then 14.14 amps flows to the first speaker where only 0.1414 amps are used to create the necessary 10 watts; from here 14.00 amps flows on to the next speaker where another 0.1414 amps are used; then 13.86 amps continues on to the next loudspeaker, and so on, until the final 0.1414 amps is delivered to the last speaker. Well, obviously the wire size necessary to connect the last speaker doesn't need to be rated for 14.14 amps. For this example, the fanatical installer would use a different wire size for each speaker, narrowing the gauge as he went. And the problem gets ever more complicated if the speakers are arranged in an array of, say, 10 x 10, for instance.

Luckily tables exist to make our lives easier. Some of the most useful appear in Giddings [3] as Tables 14-1 and Table 14-2 on pp. 332-333. These provide cable lengths and gauges for 0.5 dB and 1.5 dB power loss, along with power, ohms, and current info. Great book. Table 1 below reproduces much of Gidding's Table 14-2 [4].

Wire Gauge >

22

20

18

16

14

12

10

8

Max Current (A) >

5

7.5

10

13

15

20

30

45

Max Power (W) >

350

530

700

920

1060

1400

2100

3100

Load Power

Load Ohms

Maximum Distance in Feet

1000

5



0

0

0

185

295

471

725

500

10

0

93

147

236

370

589

943

1450

400

12.5

0

116

184

295

462

736

1178

1813

250

20

117

186

295

471

739

1178

1885

2900

200

25

146

232

368

589

924

1473

2356

3625

150

33.3

194

309

490

785

1231

1962

3139

4829

100

50

292

464

736

1178

1848

2945

4713

7250

75

66.6

389

618

981

1569

2462

3923

6277

9657

60

83.3

486

774

1227

1963

3079

4907

7851

12079

50

100

584

929

1473

2356

3696

5891

9425

14500

40

125

729

1161

1841

2945

4620

7363

11781

18125

25

200

1167

1857

2945

4713

7392

11781

18850

29000



Rane Constant Voltage Transformers

Rane offers several models of constant-voltage transformers. The design of each is a true transformer with separate primary and secondary windings -- not a single-winding autotransformer as is sometimes encountered.

MA 6S Transformers

Though the MA 6S is discontinued, the TF 170 Rated 100 watts, 70.7 volt transformers are still available, sold individually from the Rane factory. Other transformers and the KTM panel are gone, though TF 170 specs are here in the KTM 6 Data Sheet (PDF).

MA3 Transformers

The MA3 had a design change in February 2007 affecting whether the transformers are mounted internally or externally. For MA3 amplifiers manufactured after February 2007, use the MT6 rack panel with up to six transformers installed. For MA3 amplifiers manufactured before February 2007, transformers can be mounted internally. If you aren't sure, the older MA3 has six transformer mounting holes above the input jacks. TF 407 and 410 transformers are sold individually for either rack-mounting on the MT 6, or direct mounting inside the MA3 chassis:

  • TF 407 Rated 40 watts, 70.7 volts (discontinued)
  • TF 410 Rated 40 watts, 100 volts

See the TF 407 & TF 410 Installation Manual (PDF) for pre-2007 MA3 Amplifiers.

See the MT 6 Data Sheet (PDF) for post-2006 MA3 Amplifiers.

MT 4 Transformers

The MT 4 high performance toroidal transformers set a new standard for wideband frequency response and small size. The MT 4 toroidal transformers come assembled in a 1U rack-mount open tray chassis or individually as follows:

  • MT 4 Four channels (transformers with rack tray): 100 watts, 100 volts or 70.7 volts (tapped secondary).
  • TF 4 (transformer only) Rated 100 watts, 100 volts or 70.7 volts (tapped secondary).
  • KT 4 (tray only) Open 1U tray chassis with connectors, mounts (4) TF 4 transformers.

Use MT 4 transformers with any standard power amplifier and any combination of constant voltage loads up to 100 watts to improve frequency response and power handling.

MT 4 transformers use premium toroidal cores and windings to deliver excellent full-power bass and a flat frequency response well above the audio range. Distributions systems will noticeably deliver better audio fidelity. MT 4 transformers are also smaller and lighter than other distribution transformers. See the MT 4 Multichannel Transformer for details.


References

  1. Langford-Smith, F., Ed. Radiotron Designer's Handbook, 4th Ed. (RCA, 1953), p. 21.2.
  2. Earley, Sheehan & Caloggero, Eds. National Electrical Code Handbook, 5th Ed. (NFPA, 1999).
  3. See: Giddings, Phillip Audio System Design and Installation (Sams, 1990) for an excellent treatment of constant-voltage system designs criteria; also Davis, D. & C. Sound System Engineering, 2nd Ed. (Sams, 1987) provides a through treatment of the potential interface problems.
  4. Reproduced by permission of the author and Howard W. Sams & Co.
