BB 22 Balance Buddy

  • Convert unbalanced to balanced.
  • Isolate lines to stop ground loops.
  • Enables the use of long balanced cables for a hum-free signal.
  • 2 channels of -10 dBV (RCA) to +4 dBu (XLR) conversion
  • +24 dBu maximum levels
  • Nickel core “80” Ni Transformers provide wide bandwidth and low distortion

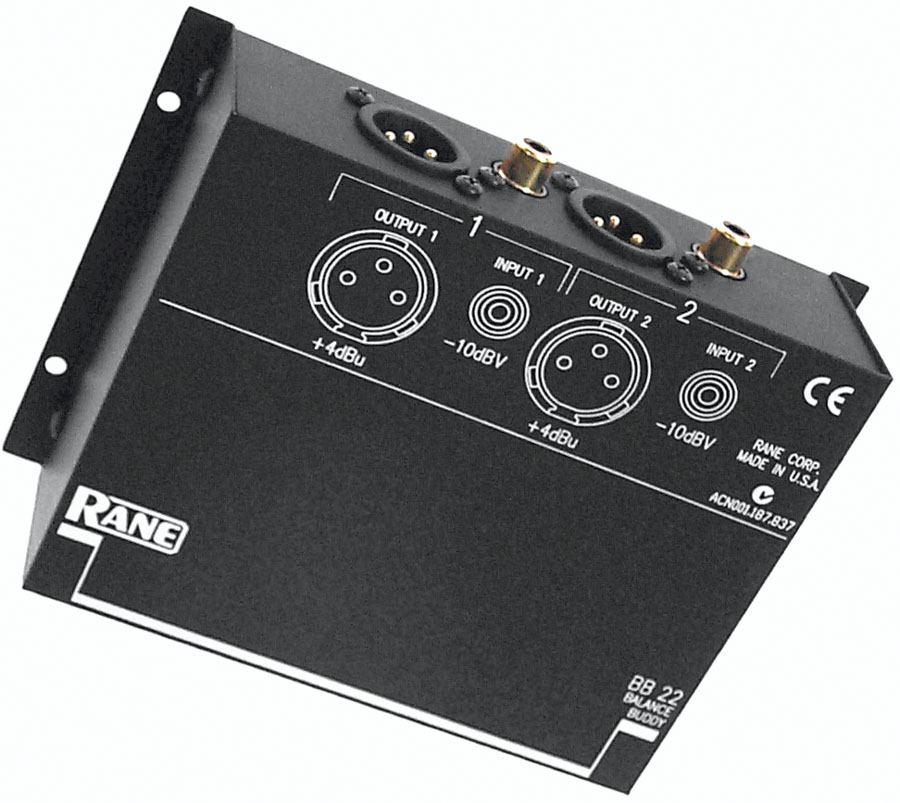

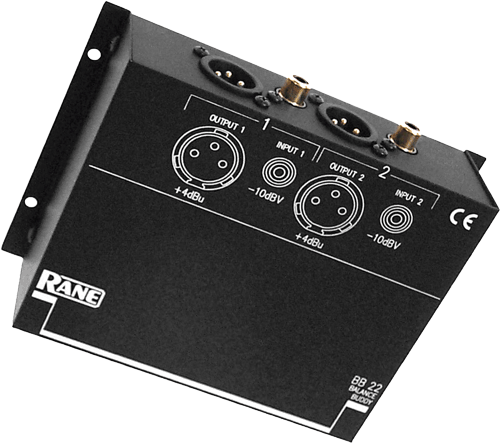

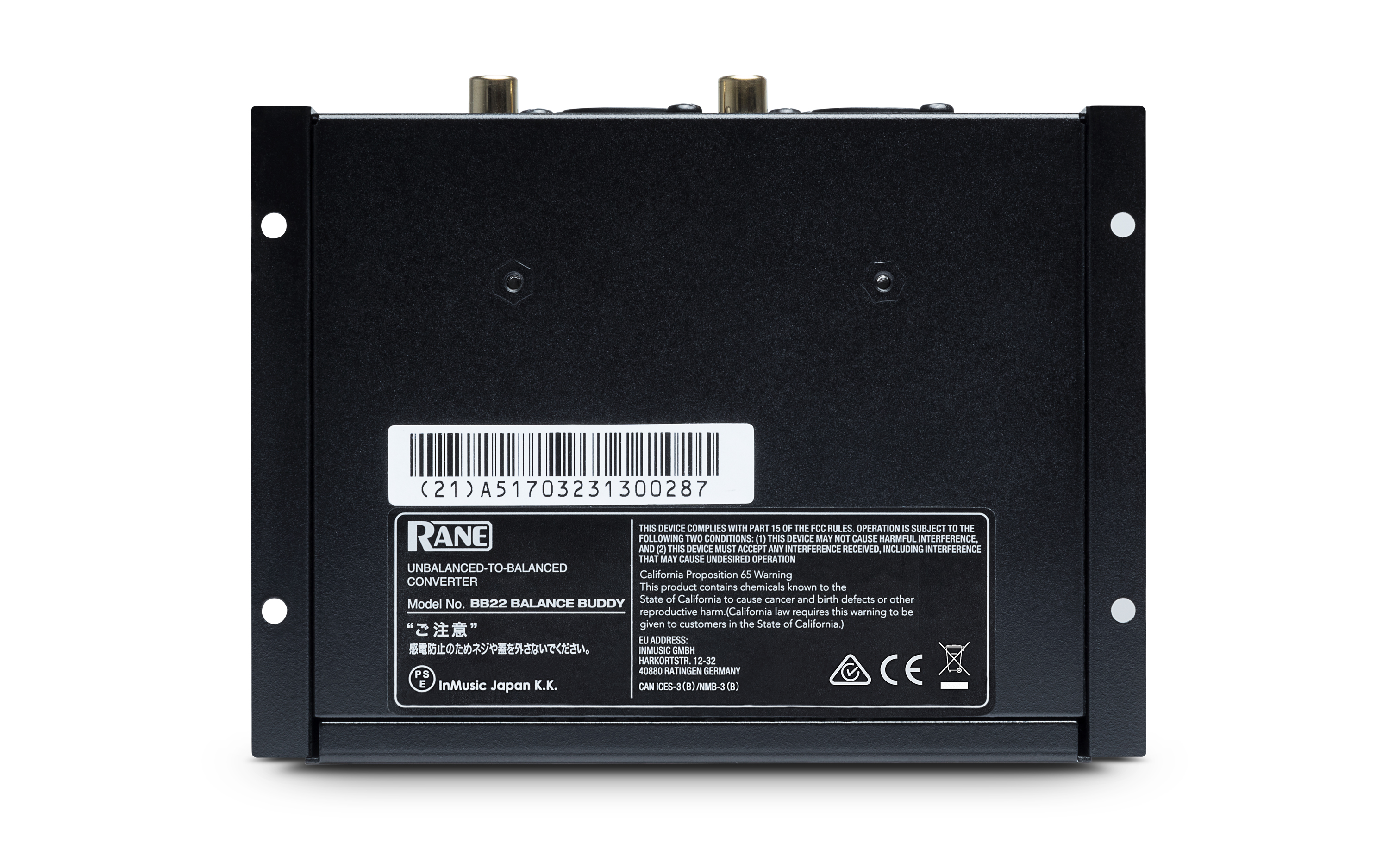

BB 22 Balance Buddy

BB 22 Balance Buddy

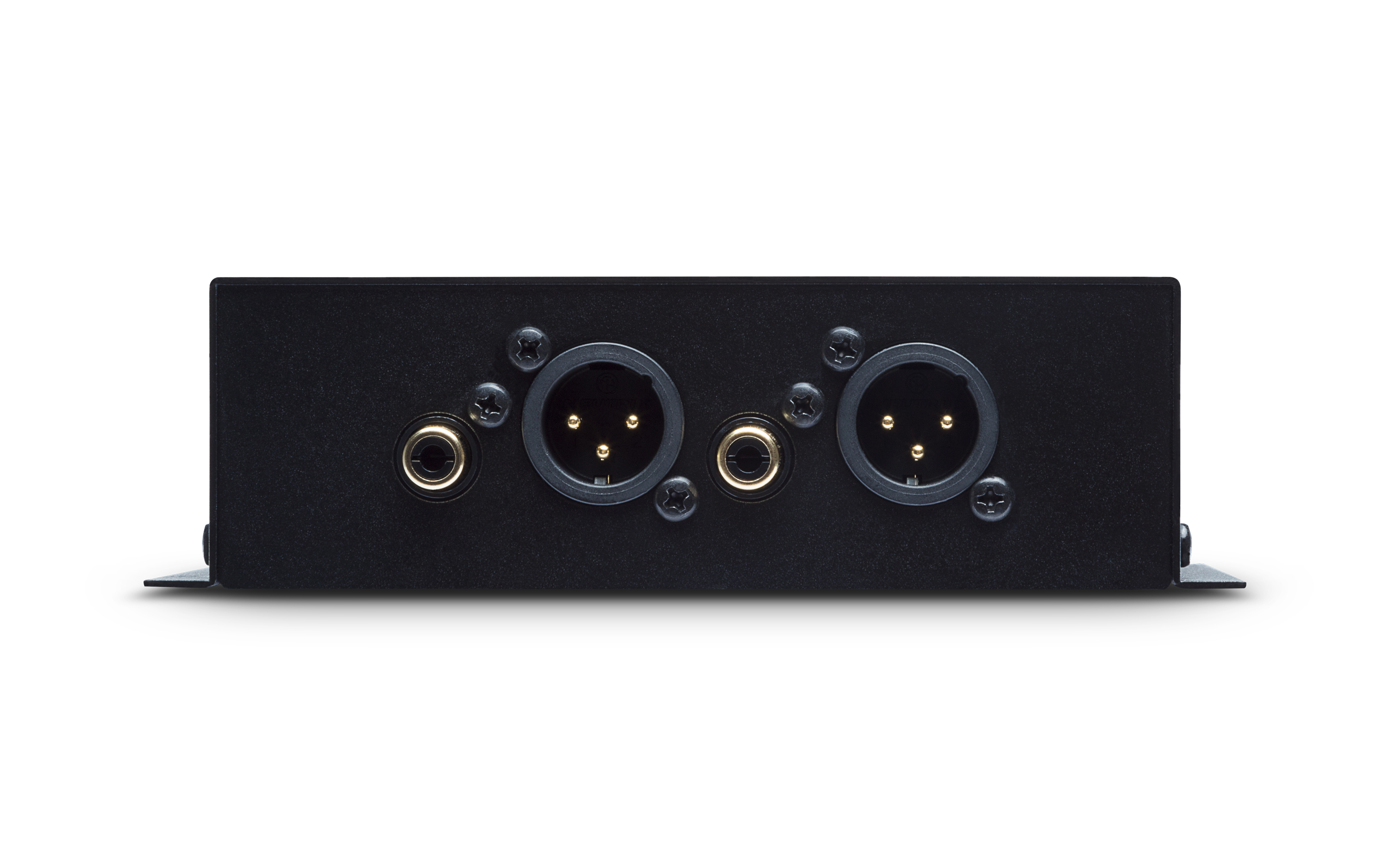

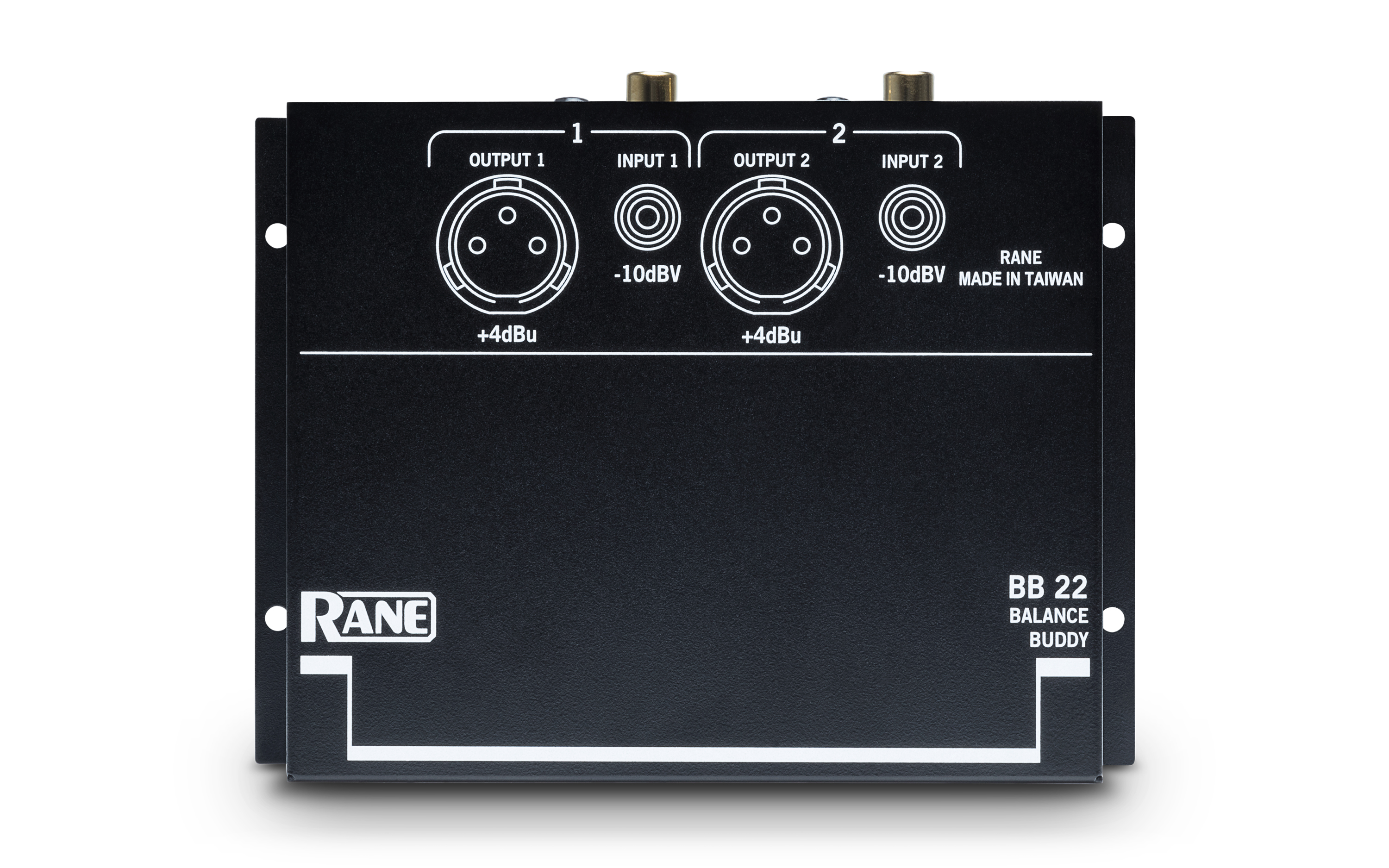

The Rane BB 22 Balance Buddy is a handy professional-grade tool used to provide isolation for and convert unbalanced -10 dBV consumer level RCA outputs up to balanced +4 dBu professional XLR inputs. The BB 22 converts one pair from -10 dBV to +4 dBu. There are two male XLR connectors and two RCA jacks.

Unbalanced lines should always be kept under 10 feet (3 meters) to prevent undesirable effects such as hum and noise. The BB 22 allows conversion to balanced lines that can be run across a studio or a house without loss of signal quality. For instance, a BB 22 may be mounted to the back of a jukebox converting its unbalanced outputs to balanced lines, feeding an amplifier in another room.

Signal-to-noise performance is perfectly preserved using the BB 22, since it uses only passive transformers to convert signal levels. It adds no additional noise whatsoever. Use of professional quality nickel core (“80” Ni) transformers guarantee low distortion, wide bandwidth and high signal level handling capability.

The BB 22’s isolation transformers provide a quick and affordable answer to most jobs requiring signal level conversion and output balancing.

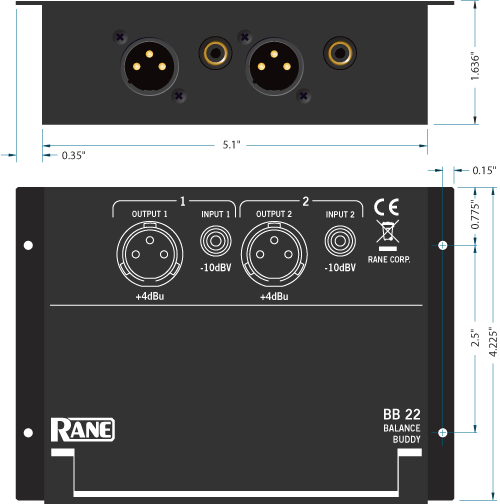

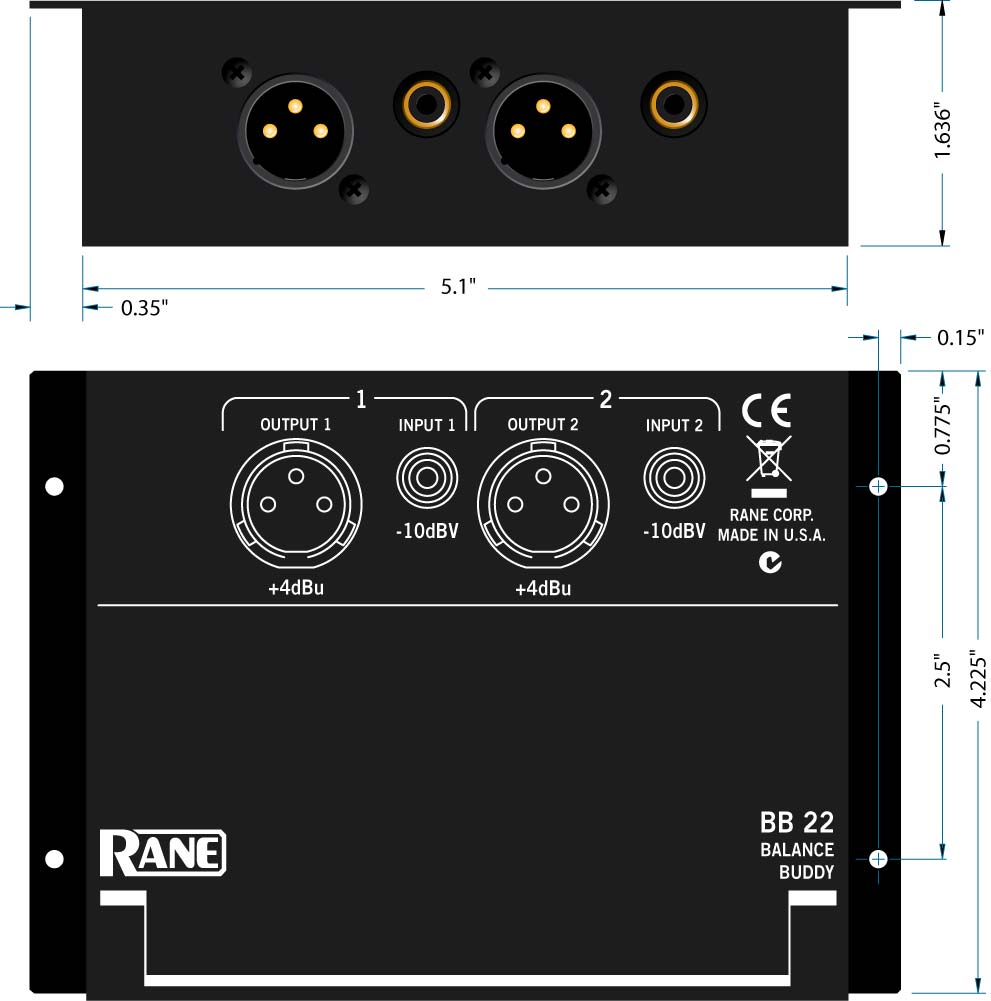

BB 22 Dimensions

BB 22 Applications

Conversion Ratio
The casual observer would think to convert -10 dBV to +4 dBu, you would need 14 dB of gain. The casual observer would be wrong. You only need 12 dB of gain. The reason is not only do you change levels, you also change reference levels -- from dBV to dBu. The first (dBV) references everything to 1.0 volt, while the second (dBu) references everything to 0.775 volts (this comes from the old power reference of 0 dBm, which equaled 1mW into 600 Ω, which equaled .775 volts).

Driving Impedances
Some people wrongly feel you cannot use a transformer to convert between -10 dBV and +4 dBu because of low impedances. This is not a problem as long as you use them to interconnect equipment with at least 15k ohms input impedance. Since most professional products have input impedances of 20 kΩ or greater (50k and 100 kΩ are not uncommon), this should never be difficult. A 15 kΩ load winds up looking like 1 kΩ to the equipment with the -10 dBV output (due to transformer action). This may seem excessively low, but is not in practice. The maximum transformer output level of +24 dBu occurs with an input level of +10 dBV, which equals 3.16 volts. And 3.16 volts driving 1 kΩ only requires 3.16 milliamps, which is a very modest requirement for any -10 dBV equipment to deliver.

The BB 22 follows AES/ANSI/IEC standards of pin 2 positive and pin 3 negative. Note the shields (commons) of the RCA jacks are not tied together. This provides better ground isolation of the unbalanced units. A positive signal applied to the tip of the RCA jack causes a positive signal to appear on pin 2 of the XLR, and vice-versa if signal direction is reversed.

Signal Direction
Signal can be converted through the channels either direction. The only problem arises in the gender of the XLR connector. The solution requires same-sex XLR adaptors or special cables.

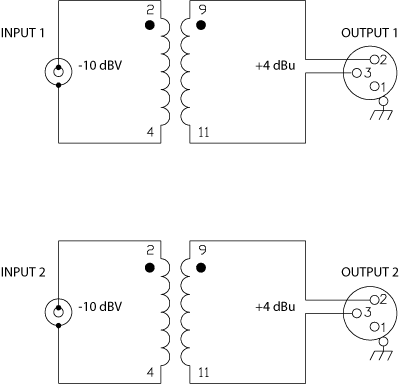

BB 22 Block Diagram

BB 22 Literature

Each unit is shipped with the Manual containing the schematic, the RaneNote "Sound System Interconnection," Declaration of Conformity, and Rane's 2+ Year Warranty information.

BB 22 Technical Support

Will the unit work in reverse (i.e. is it bi-directional)?

Yes. These products do not have a required signal flow. Simply use the inputs as outputs and vice versa.
