The Rane AM2 is both an 8 channel, gain-sharing automatic mic mixer and simultaneously a Rane RAD. Use it as a standalone mic-only mixer, add more gain-shared mics using up to seven additional AM2 Automixers, and/or use the RAD Port to transport the mic mix to Rane's HAL system.

Each of the eight XLR Mic Inputs offers front panel input Level controls feeding a gain-sharing automatic mixer. Rear panel, 3-position selectors support dynamic mics (no phantom power), condenser mics (48 V), or line input optimized for wireless receiver outputs (+10 dBu max). All Level controls come with front panel signal and overload indicators.

The AM2 is optimized for automixing speech. The mic inputs have a fixed 100 Hz to 7 kHz bandpass filter to provide the best voice-only automatic mixing using the gain-sharing algorithm.

The XLR Main Output can be set to mic- or line-level to feed a mic snake or a +20 dBu max balanced input. When an AM2 is used standalone, both the XLR Output and the RAD Port output audio are affected by the front panel Output Level control. When the AM2’s Cascade Output feeds a downstream Rane AM2, the front panel Output Level control only affects the XLR Output.

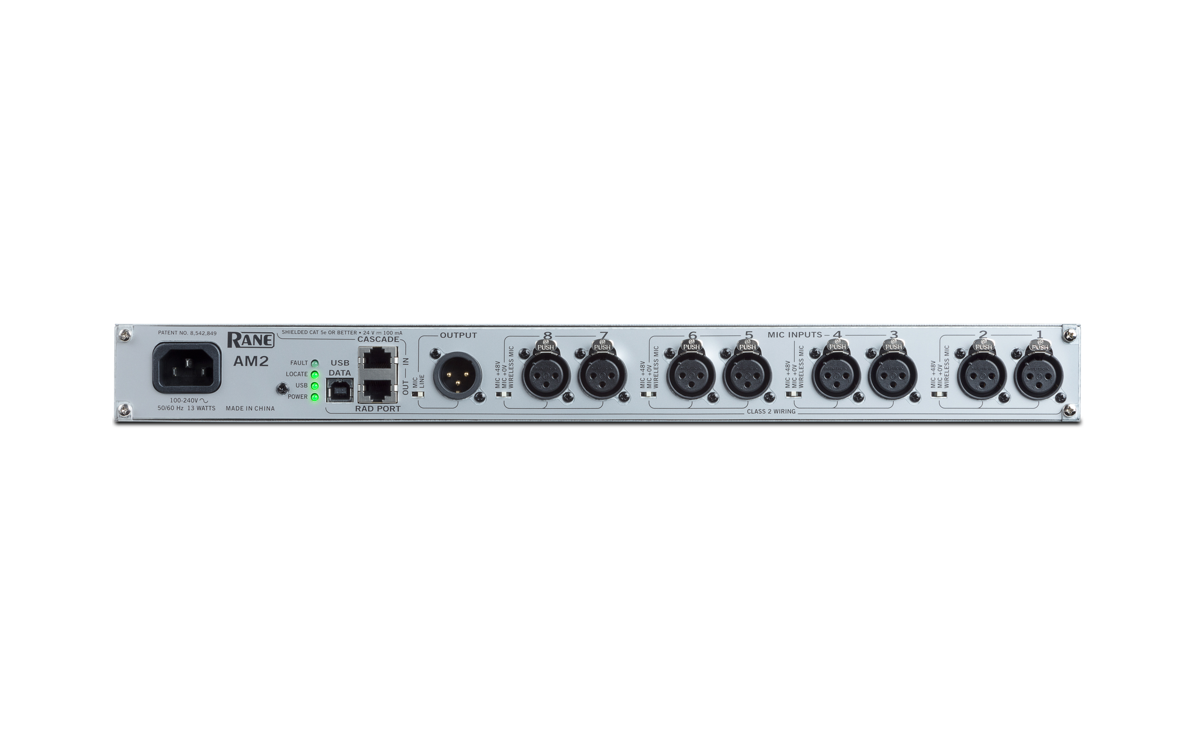

The RAD Port sends the AM2 Output mix to a Rane HAL System. Cascade IN accepts audio and data from an upstream AM2’s Cascade OUT. This adds eight more mic channels to the initial AM 2 creating a 16-channel gain-sharing automix. A maximum of eight AM2s can be cascaded, offering up to 64 gain-shared mics. Simply connect Cascade OUT ports to Cascade IN ports and the RAD Port to the HAL. Both the Cascade IN port and the Cascade OUT/RAD Port have status indicators to aid setup and troubleshooting. Rear panel Fault, Locate, and Power indicators inform of device errors, the AM2’s physical location and AC power status. Duplicate Locate and Power indicators on the front help installers physically locate and verify AC power to the AM2.


    • Gain-Sharing Automatic Mic Mixing:
      • Eight XLR Inputs with Level controls & Sig/OL indicators.
      • Each can be Mic, Mic with 48V phantom, or Line-level.
    • Add up to 64 more gain-sharing inputs by cascading AM2 Automixers.
    • Add other audio sources, line inputs and remote controls by connecting to HAL system


    OUTPUTS (all MONO)

    • XLR Main with Mic/Line switch, Level control & Sig/OL.
    • Rane RAD and Cascade IN RJ-45 Ports:
      • Cascade In Port connects up to seven additional Rane AM2 mixers, (eight units total)
      • RAD Port may send Output to HAL (DSP/control). It is possible to cascade the AM2 mix into Halogen's Gain-Sharing Auto Mixer or Room Combine Processor DSP, so that all mics connected to HAL may gain-share.
Technical Specifications
XLR Inputs Mono, Balanced, Mic/Line Selectable
Phantom Power +48V per IEC 60268-15, Selectable in Mic mode
Maximum Input -18dBV / -6dBV / +12dBV (Dynamic / Condenser / Wireless)
Input Impedance 2.01kΩ, 1%
Input Gain Range -80 to +34dB / -80 to +26dB (Mic / Wireless)
Frequency Response 80Hz to 7kHz, +0/-3dB, -20dBFS, Extended Vocal Range
Main Output Mono, Balanced, XLR
Maximum Output -20 / +20 (Mic / Line), 10 kΩ load
Output Impedance 51 / 300Ω, 1%
Output Gain Range -80 to 0dB
Frequency Response 80Hz to 7kHz, +0/-3dB, -20dBFS
Dynamic Range 101dB re +20dBu, 20kHz BW, A-weighted, 0dB gain, 10kΩ load
THD+N < 0.02%, 100Hz to 7kHz, A-weighted, +4dBu, 0dB gain, 10kΩ load
LED Meters Mono, peak detecting
Signal -50dBFS, Green LED, Peak-Reading
Overload -0.5dBFS, Red LED, Peak-Reading
RAD / Cascade In/Out 8P8C (RJ-45) Connector
Sample Rate and Resolution 48 kHz @ 24 bits
Unit All Steel Construction
Universal Line Voltage 100 to 240V AC, 50/60Hz, 13W
Size 1U 1.75”H x 19”W x 8.5”D (4.4 x 48.3 x 21.6cm)
Weight 5 lb. 4 oz. (2.4kg)
  • AM2
  • IEC Power Cable
  • User Guide
  • Safety & Warranty Manual
