(PRODUCT DISCONTINUED)

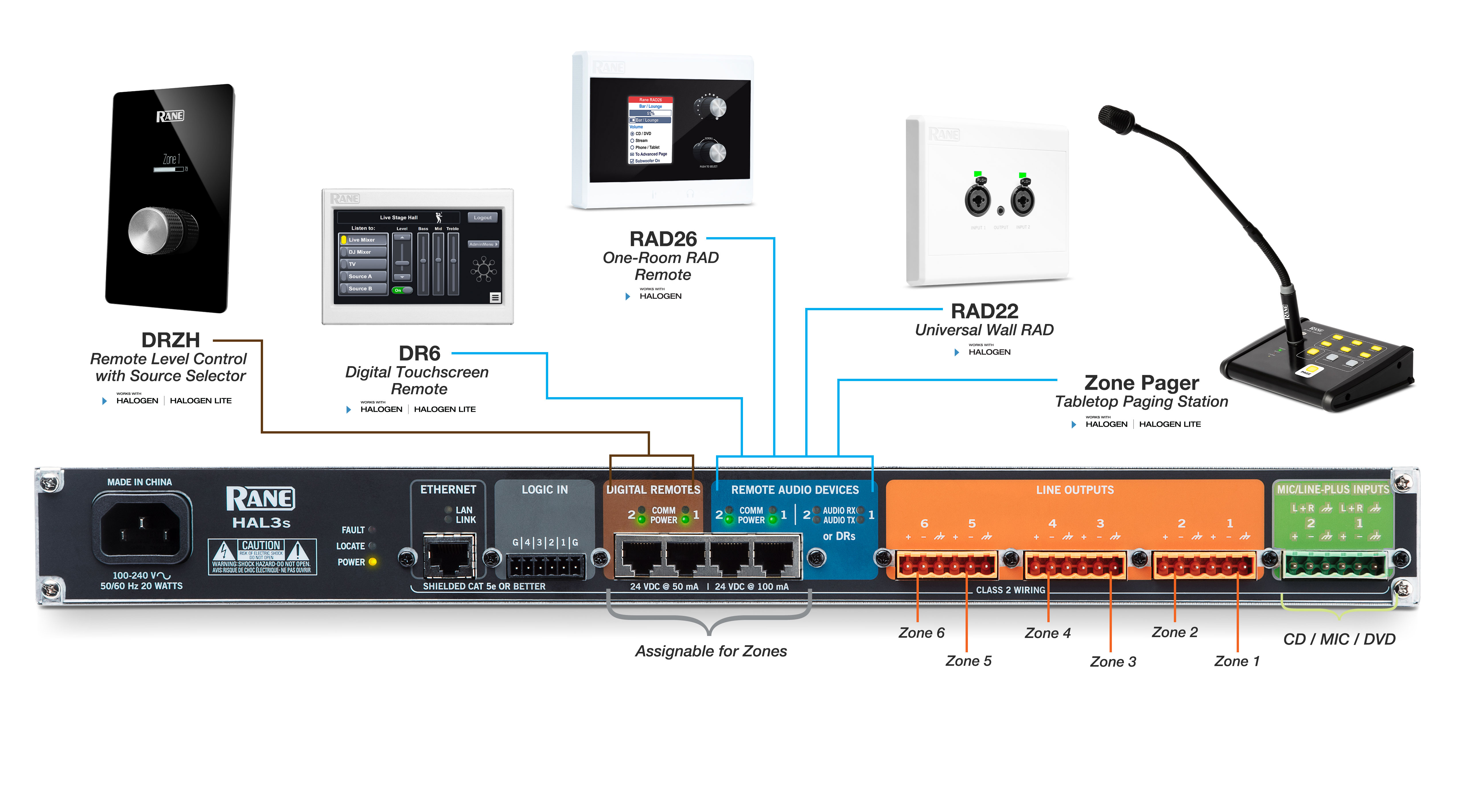

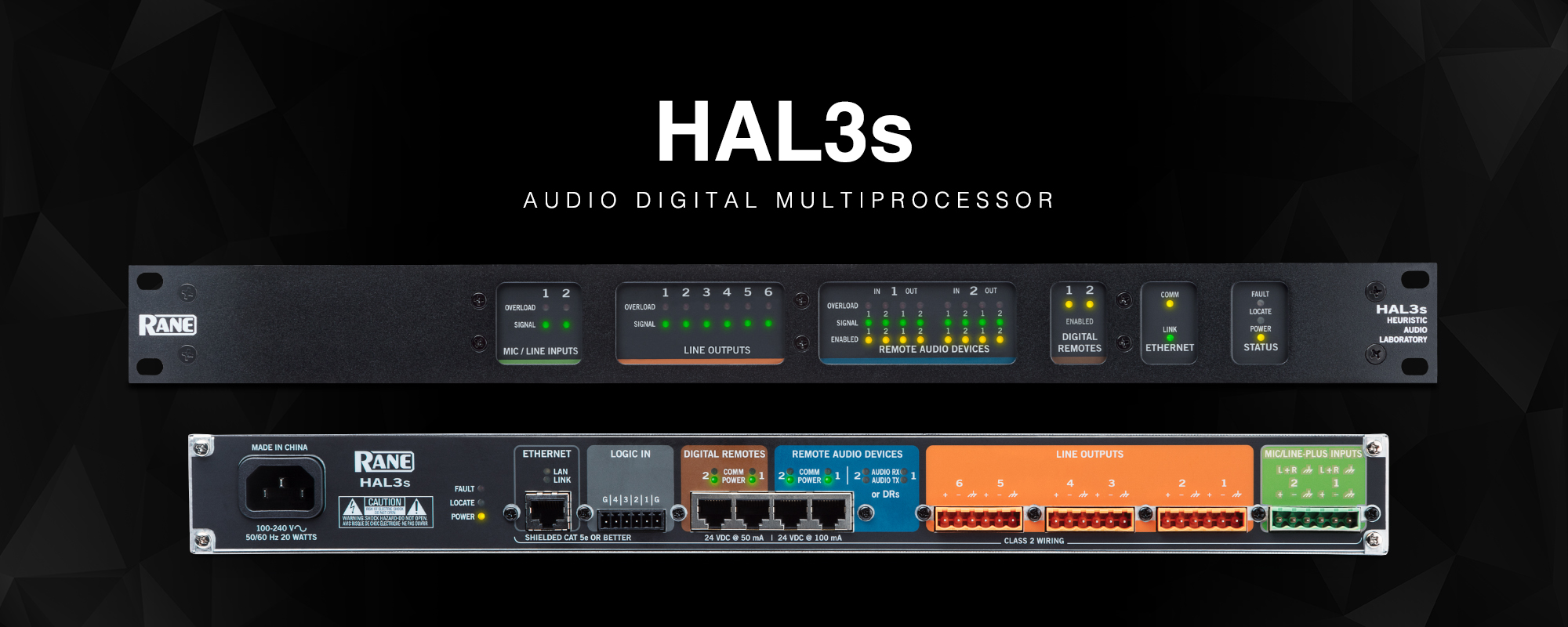

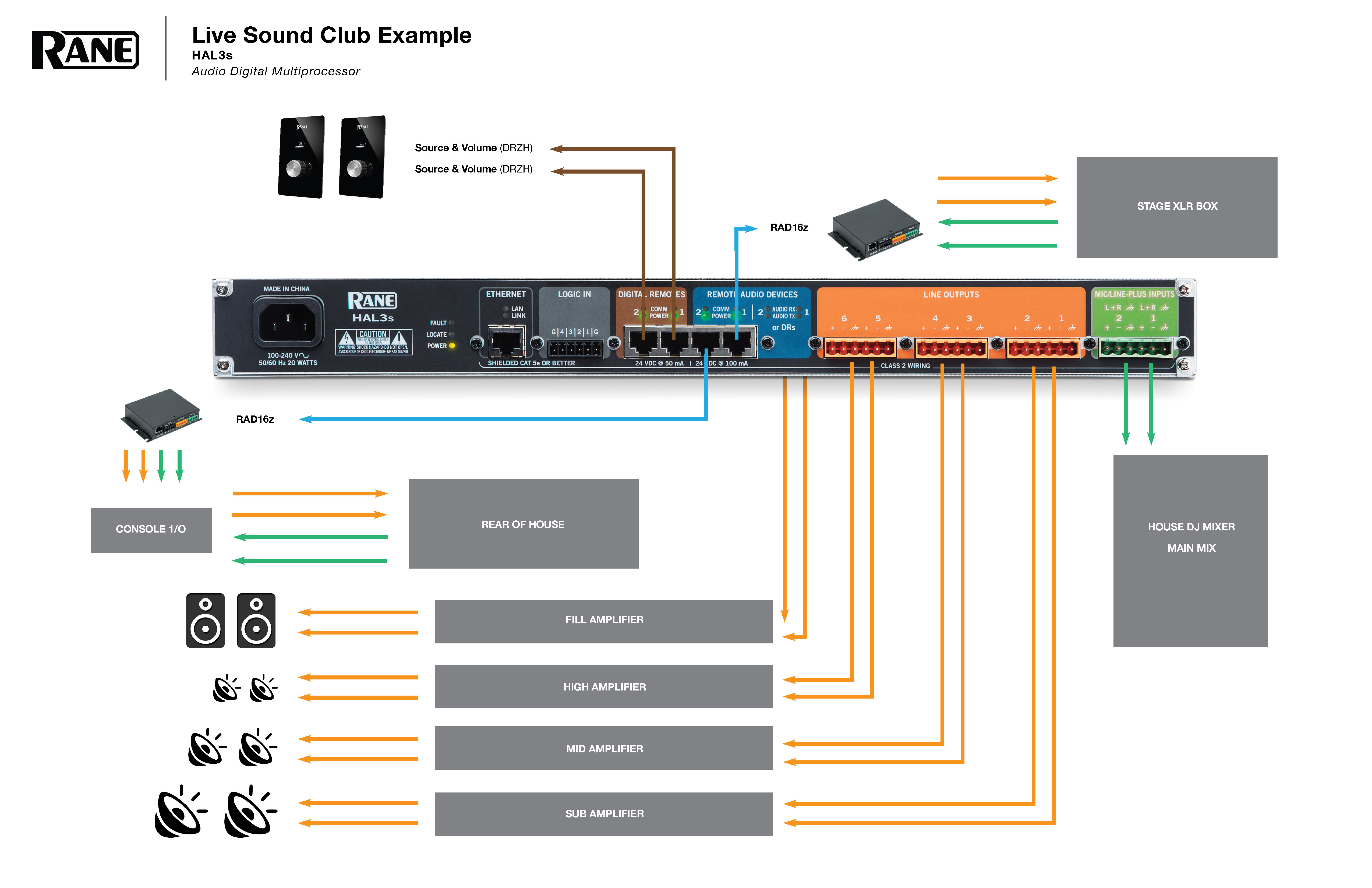

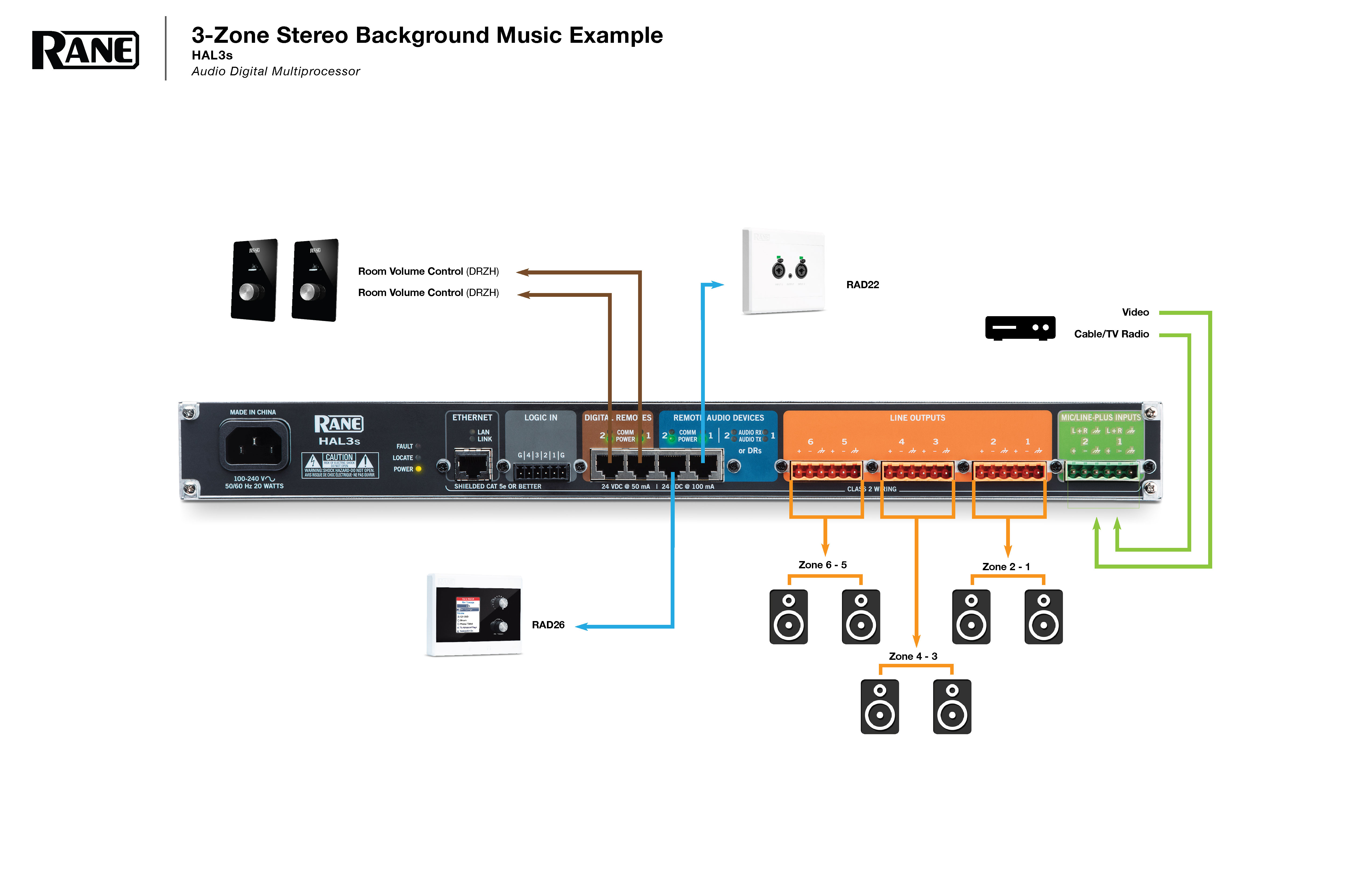

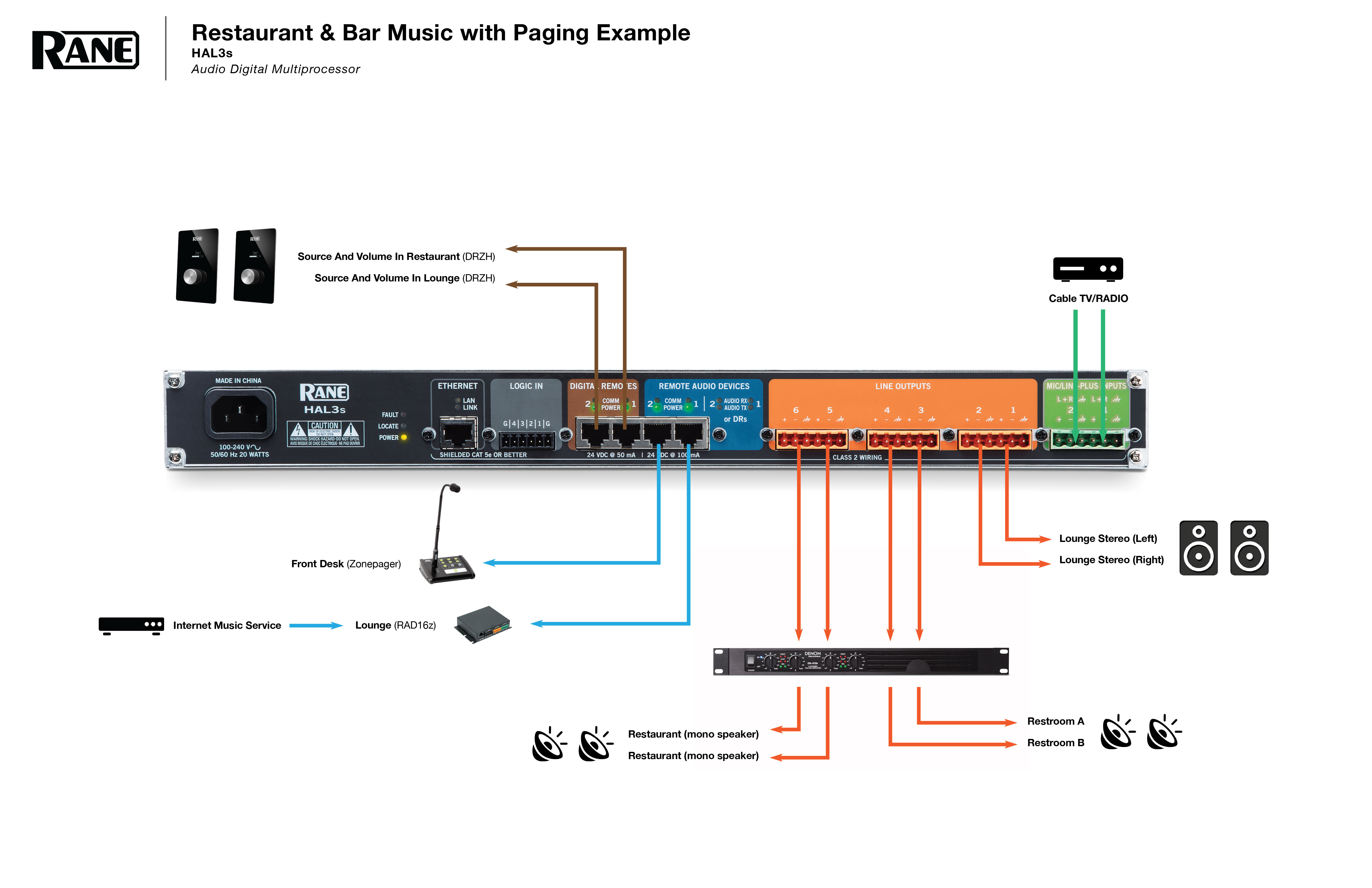

The RANE HAL3s is a digital processor for audio systems. This groundbreaking architecture is used for room combining, paging and distributing audio to several zones in an installation. Utilizing Halogen® software, even novice users are guided through what used to be complex tasks in just minutes. No intricate matrix mixing or presets are required for room combining and paging. No complex wiring is required to distribute pages and background music to multiple zones. Seamlessly interface HAL to small or large installations with web controls, (no app required) and/or a broad variety of peripheral devices including smart Digital Remotes (DRs), Remote Audio Devices (RADs), portable or rack automixers, small remote amplifiers, and an advanced Paging Station. In addition, the HAL3s Multiprocessor and Halogen™ software check the status, location, CAT 5e wiring integrity, and that audio is flowing in all peripheral devices, so you know your system is properly connected and ready to go.

*Learn more at www.denonpro.com

Features
  • - 6-in 10-out system: 2x6 analog & 4x4 expansion (via RAD ports)
  • - 2 Mic/Line, Line-plus inputs with 48V phantom power
  • - Supports up to 2 remote audio devices (RADs) and 2 digital remotes (DRs) or 4 digital remotes (DRs)
  • - 4 logic inputs for contact closure control
  • - Front panel signal and overload indicators
  • - Supports control via web browser
  • - Event manager for time-of-day event control
  • - 108dB dynamic range
Package Contents
  • - HAL3s
  • - Euroblock connectors
  • - Cat-5e cable
  • - IEC power cable
Technical Specifications
Parameter Specification Limit Conditions/Comments
Analog I/O 2 x 6 2 Mic/Line/Line-plus Inputs, 6 Line Outputs

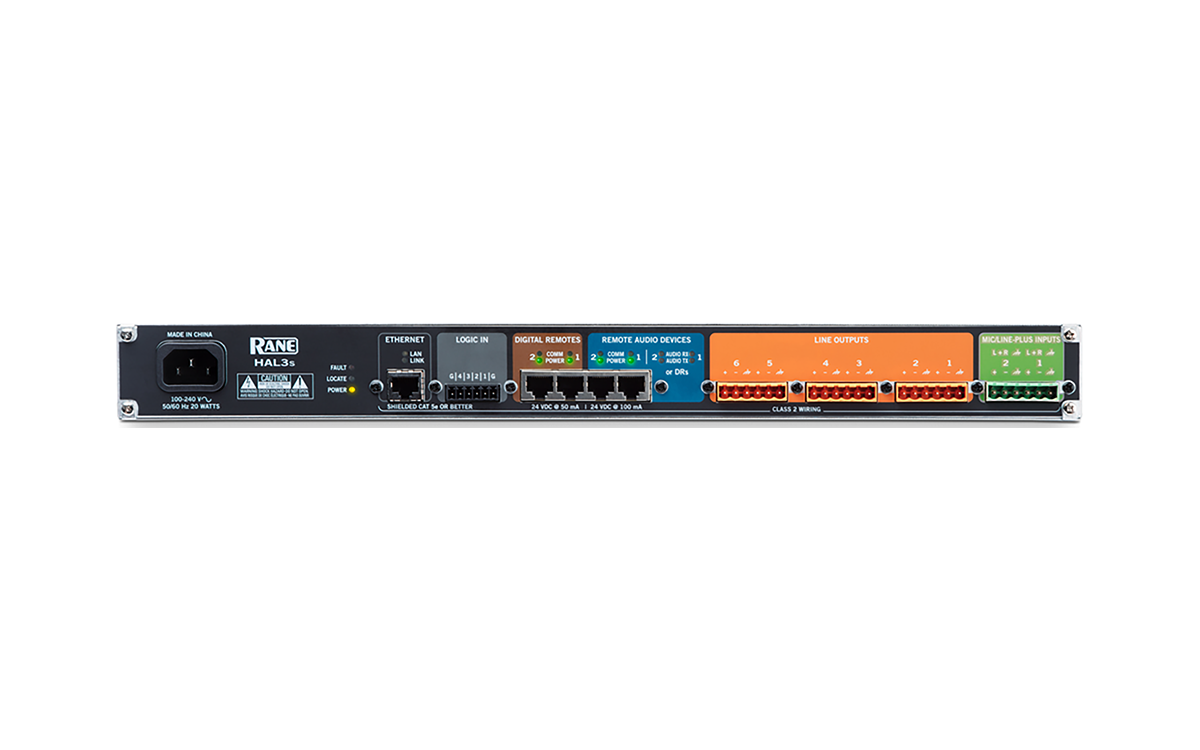

Connectors Euroblock 4 x 6-pin, 5mm pitch, Green = Inputs, Orange = Outputs
CODEC 24-bit, 48kHz
All Inputs Common specifications
Input Impedance 2.9kΩ 1% Each leg to ground
Inter-channel isolation >100dB typ 20Hz–20kHz, unity gain, channel-to-channel
CMRR 55dB min 1kHz
Inputs: Dynamic Mic Mode Active Balanced Microphone input mode without phantom power
Gain +30dB to +50dB typ +30db (analog gain), 1dB steps to +50dB (digital gain)
THD+N < 0.005% typ 20Hz–20kHz, +4dBu out, 0dB digital gain
Equivalent Input Noise -120dBu typ 20Hz–20kHz, 150Ω source, 30dB gain
Maximum Input -18dBV (125mVrms) typ 1kHz, < 0.01% THD+N
Frequency Response 20Hz–20kHz, +0.0/-0.3dB +4dBu out, 100kΩ load, Mic Input to Output
Inputs: Condenser Mic Mode Active Balanced Microphone input mode with 48V phantom power
Gain +18dB to +38dB typ +18dB (analog gain), 1dB steps to +38dB (digital gain)
Phantom Power +48VDC 10mA max per input
THD+N < 0.005% typ 20Hz–20kHz, +4dBu out, 0dB digital gain
Equivalent Input Noise -110dBu typ 20Hz–20kHz, 150Ω source, 18dB gain
Maximum Input -6dBV (500mVrms) typ 1kHz, < 0.01% THD+N
Frequency Response 20Hz–20kHz, +0.0/-0.3dB +4dBu out, 100kΩ load, Mic Input to Output
Inputs: Line+ Mode Active Summer Left ("+") and Right ("-") signals summed to mono
Gain 0dB to +20dB typ 0dB (analog gain), 1dB steps to +20dB (digital gain)
THD+N < 0.007 % typ 20Hz–20kHz, +4dBu out, 0dB digital gain
Maximum Input +14dBu typ 1kHz, < 0.01% THD+N, each leg
Frequency Response 20Hz–20kHz, +0.0/-0.3dB +4dBu out, 100kΩ load, Line-plus Input to Output
Dynamic Range (in to out) 108dB max re +20dBu, 20kHz BW, A weighted, Rs = 50Ω
Inputs: Line Mode Active Balanced Balanced line level input
Gain 0dB typ 0dB (analog gain), 1dB steps to +20dB (digital gain)
THD+N < 0.005% typ 20Hz–20kHz, +4dBu out, 0dB digital gain
Maximum Input +14dBu typ 1kHz, < 0.01% THD+N
Frequency Response 20Hz–20kHz, +0.0/-0.3dB +4dBu out, 100kΩ load, Line Input to Output
Dynamic Range (in to out) 108dB max re +20dBu, 20kHz BW, A weighted, Rs = 50Ω
Outputs Active Balanced
Impedance 200Ω 1% Each leg
Maximum Output +20.0/+15.5dBu typ 1kHz, 100kΩ/600Ω load
Indicators
Signal -50dBFS typ Green LED, peak-reading
Overload -0.5dBFS typ Red LED, peak-reading
Propagation Delays
RAD In to RAD Out 1.71ms typ Tested with RAD23
RAD In to Analog Out 1.85ms typ
Analog In to RAD Out 2.25ms typ
Analog In to Analog Out 2.39ms typ
DSP
Processing Power 2400MIPS max 1DSP @ 300MHz with up to 8 instructions/cycle
Word Length 32/64-bit Floating Point
Delay Memory 20 seconds max
Computer Interface
Type Ethernet 1000 Base-T Zeroconf service discovery protocol for easy set up
Cable Shielded CAT 5e or better RJ-45 connector
Length 100 meters/300 feet max Standard Ethernet cable length limit
RAD Port 2 RJ-45 connectors
Audio Channels 2 in x 2 out Each port 2 in x 2 out, control channel, 24-bit, 48kHz
Power 24VDC @ 100mA max Each port
Length 152 meters / 500 feet max Shielded CAT 5e cable or better
DR Ports 4 RJ-45 connectors
Power 24VDC @ 50mA max Each port
Length 300 meters / 1000 feet max Shielded CAT 5e cable or better
Logic Inputs 4
Connector Mini Euroblock 6-pin, 3.81mm pitch, Black
Internal Pull-up 51.1kΩ, 5.0V Protected to +24V, reverse polarity protected
Vin High > 2.2V min Normal state
Vin Low < 0.7V max External circuit sinks > 22µA to assert
Wiring Class 2 All rear panel terminals
Power Requirement 100 to 240VAC 50/60Hz, 20W max
Ambient Room Temp. 40°C max Maximum external loading
Unit: Conformity CE, FCC, cCSAus
Unit: Size 1.73"H x 19"W x 8.25"D (4.4cm x 48.3cm x 20.9cm)
Weight 4.75 lb. (2.2 kg)
Shipping: Size 4.25" x 20.3" x 13.75" (11cm x 52cm x 35cm)
Weight 9 lb. (3.8 kg)

*Learn more at www.denonpro.com

Compatible Products



DRZH Remote Level Control with Source Selector

The DRZH is a wall-mounted digital remote (DR) for use with all Rane multiprocessors, including the new Zonetech audio processor. The DRZH features source selection and level control through the use of a single knob. It has a sleek black glass design, and the OLED display is easy to read in any environment. Connect the DRZH to RANE DSP with a Cat5e (or better) cable for a local run up to 1000 ft (300m) away from the equipment rack.

Each DRZH may be installed onto a standard U.S. 1-gang electrical box.

<<LEARN MORE>>


Zone Pager Tabletop Paging Station

The RANE Zone Pager is a paging station that allows users to page up to (6) zones separately, to (2) groups of zones, and to all zones at the same time. Lights will indicate if the zone is READY or BUSY (already being paged by a higher-priority paging station) and when the chime has completed (if enabled).

Zone Pager is perfect for use in bar/lounge restaurants, meeting rooms, schools, house of worship, and smaller venues where multiple paging zones are needed.

<<LEARN MORE>>


RAD22 Universal Wall RAD

The RAD22 adds flexible I/O capability to RANE DSP systems. It provides two mic and two line inputs via XLR/TRS combination jacks and an 1/8” (3.5mm) stereo line output for monitoring, recording or amplification. Smart muting allows for the disconnecting of XLR and 1/4” cables to prevent disruption to sound systems for hot-swapping of microphones - even with 24V phantom power applied. Connect the RAD22 to RANE DSP with a Cat5e (or better) cable for a local run up to 500 feet (150m) away from the equipment rack.

Each RAD22 may be installed onto a standard U.S. two-gang electrical box, or flush-mounted to a wall surface.

<<LEARN MORE>>

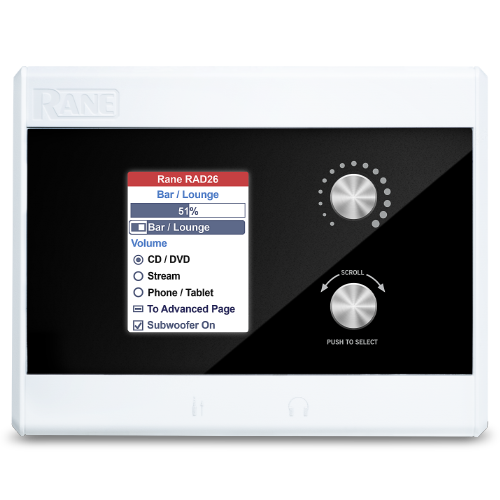

RAD26 One-Room RAD Remote

The RAD26 provides any room with end user control via the color LCD display and rotary encoders. It also features a dual universal audio I/O interface, line-level input jacks for local needs, a headphone output, and a dual 4-watt amp all using using one shielded cat5e (or better) cable drop. Three logic closure inputs and three active-low outputs add to the control capabilities. The built-in amplifier powers a small stereo pair of room speakers, or it can be switched in software to power a single 8-watt speaker. The RAD26 provides enough I/O and control to support one room in a HAL audio system which may require…

*RPI required for compatibility with the HAL3s

<<LEARN MORE>>

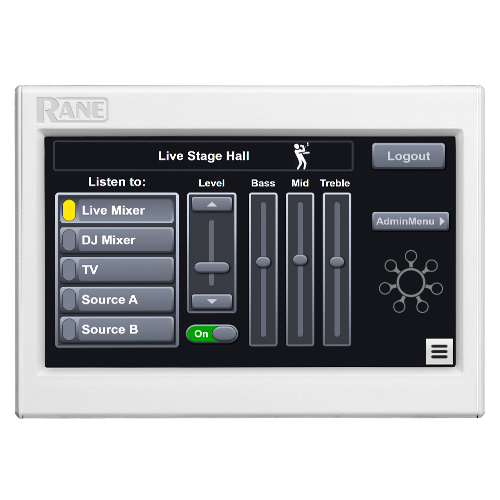

DR6 Digital Touchscreen Remote

The DR6 is a fully customizable touchscreen remote for the HAL family. It supports multiple pages or tabs, and any set of levels, toggles, selectors and/or commands. Drag, drop, and resize controls as desired. Ability to use custom background images and logos in full-color on the 7-inch LCD display.

*RPI required for compatibility with the HAL3s

<<LEARN MORE>>


RAD16z Halogen Interface with Dual Inputs / Dual Outputs / Dual Logic I/O

The RAD16z is an alternative to standard switch boxes for impractical areas such as in stage floor pockets or above ceilings. Its form factor is a rugged metal box with flexible surface mounting options. The RAD16z is plenum-rated UL 2043. It contains two balanced Mic / Line / Line-Plus inputs and two balanced line outputs on Euroblock connectors.

<<LEARN MORE>>

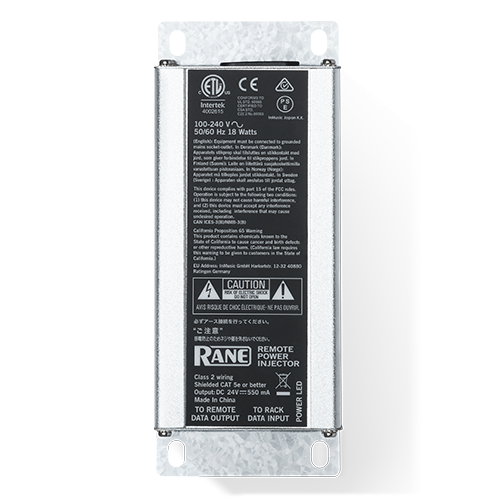

RPI Remote Power Injector for DR6 and RAD26

The RPI is a remote powering device for the DR6 Touchscreen Digital Remote and the RAD26 One-Room Remote Audio Device. This power supply is needed when using the DR6 or RAD26 with rackmount HAL units (HAL3s and legacy units). The RPI is connected between the HAL and the peripheral controller using shielded Cat 5e cable (or better), and can be located at any point between the HAL units and the peripherals within a 325ft (100m) maximum distance. It requires 100-240 VAC and utilizes an included standard IEC cable. Its form factor is a rugged metal box, and can be mounted to any flat surface.

<<LEARN MORE>>


AM2 Automixer

The Rane AM2 is both an 8 channel, gain-sharing automatic mic mixer and simultaneously a Rane RAD. Use it as a standalone mic-only mixer, add more gain-shared mics using up to seven additional AM2 Automixers, and/or use the RAD Port to transport the mic mix to Rane's HAL system.

Each of the eight XLR Mic Inputs offers front panel input Level controls feeding a gain-sharing automatic mixer. Rear panel, 3-position selectors support dynamic mics (no phantom power), condenser mics (48 V), or line input optimized for wireless receiver outputs (+10 dBu max). All Level controls come with front panel signal and overload indicators.

<<LEARN MORE>>
